Tech Pack & Sewn Prototype Sample

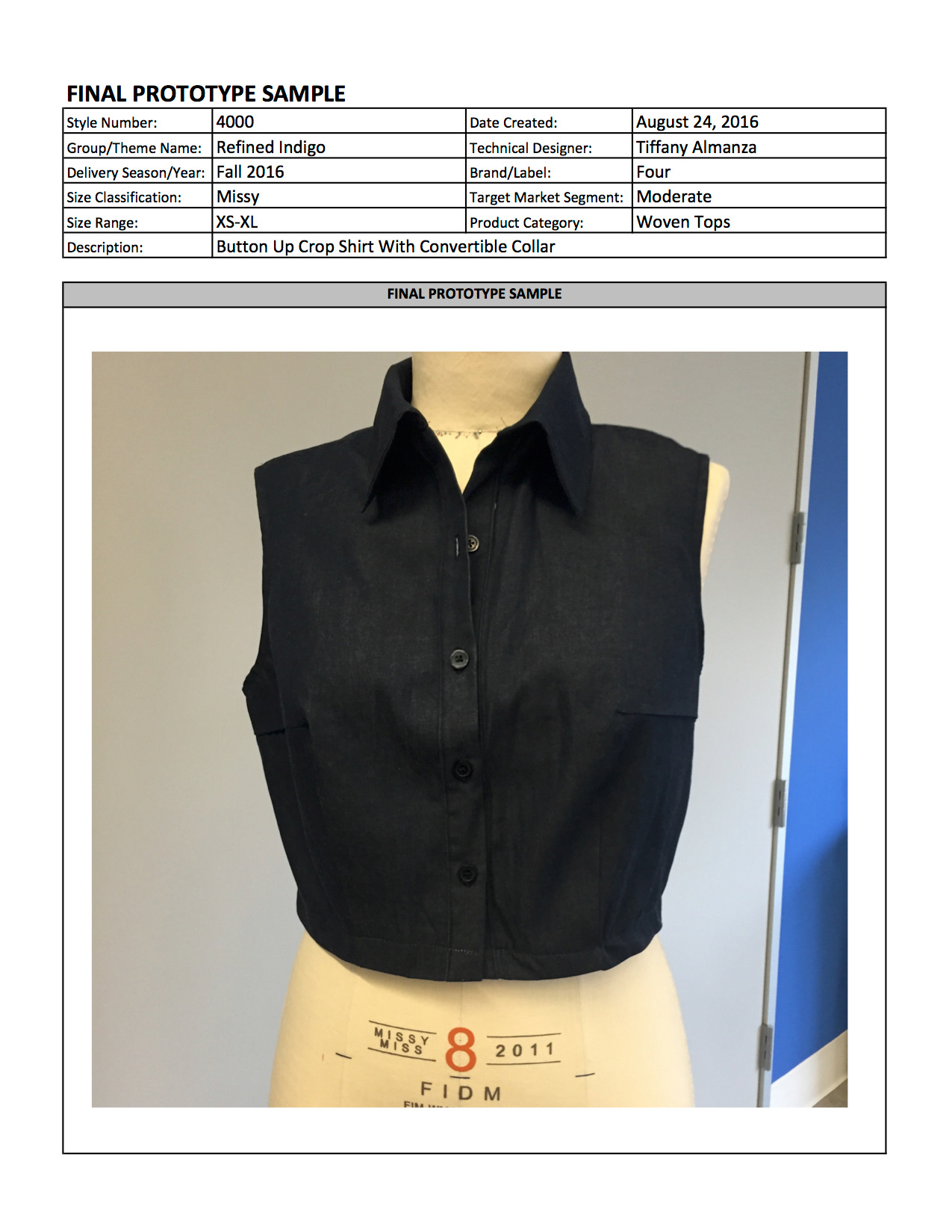

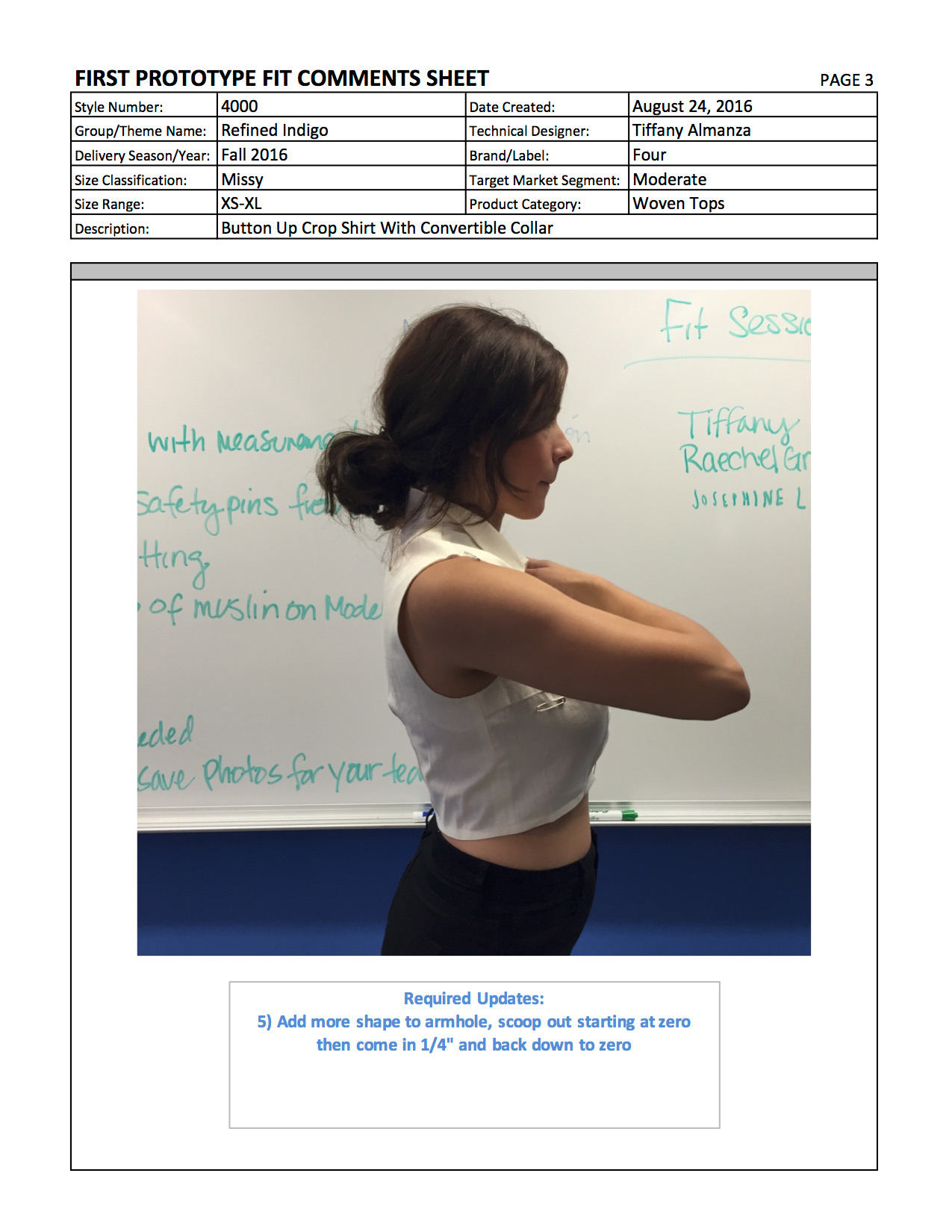

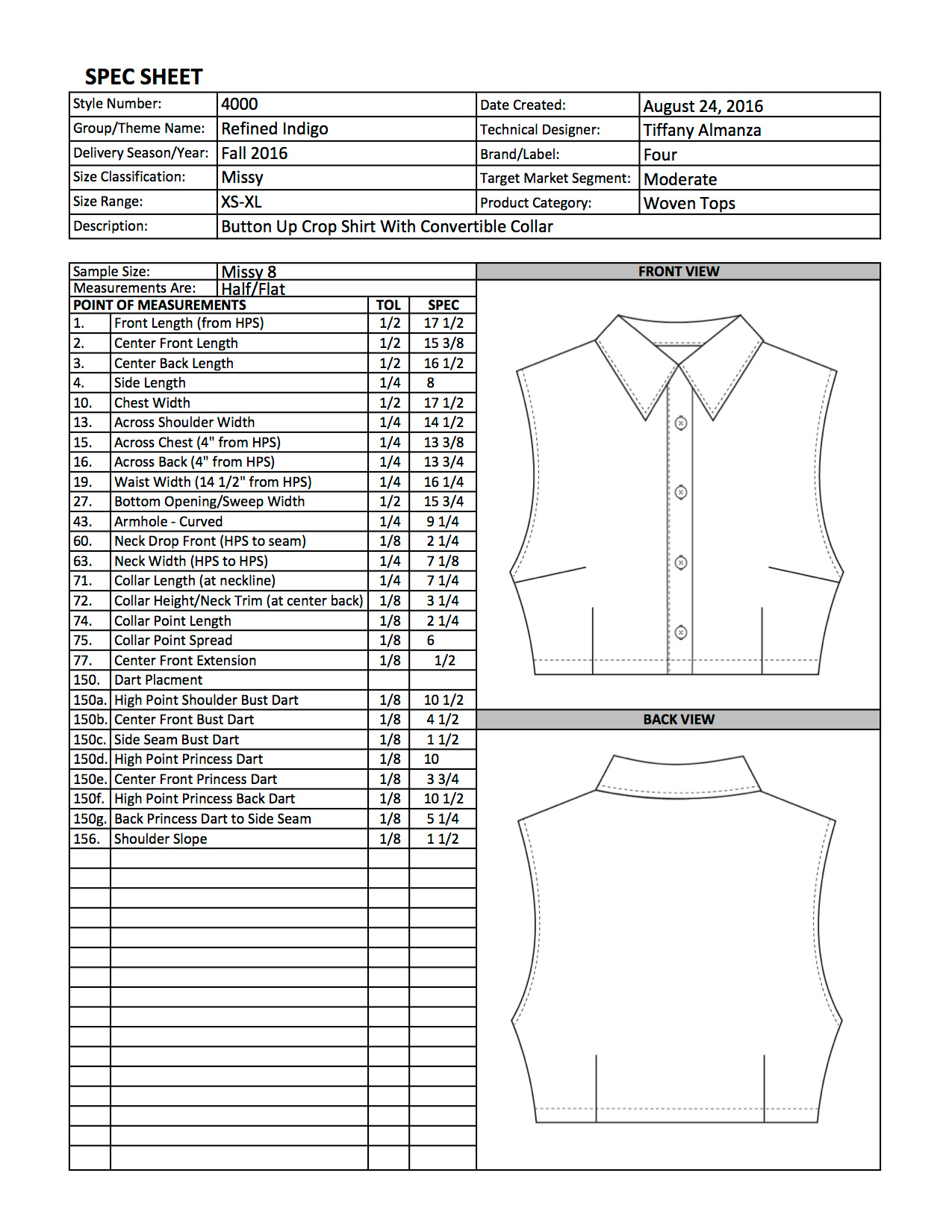

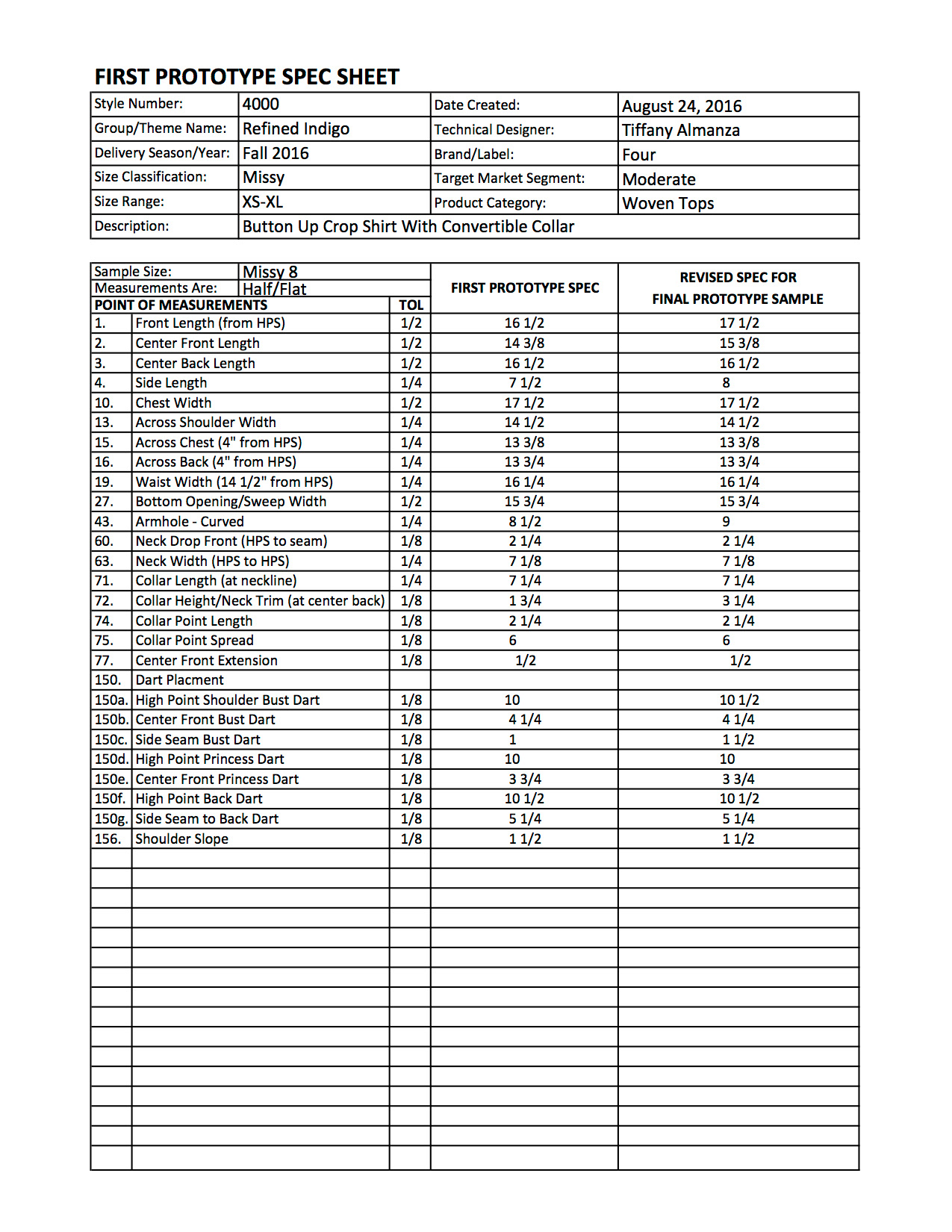

FIDM technical design final project. Created a woven top prototype by developing garment specifications, applying advanced draping and pattern drafting techniques, and assessing the fit. Tech pack includes the following; Page 1: Final Prototype Sample Pages 2: Design Sheet Page 3: Spec Sheet Page 4-6: POM (points of measurement) Placement Sketches Page 7: First Prototype Spec Sheet Page 8-10: First Prototype Fit Comments Sheet w/ Photos Page 11: Pattern Card Page 12-14: Construction Callout Sketches Page 15: BOM (bill of materials)
